Slit Lamp Lenses
Classic Series

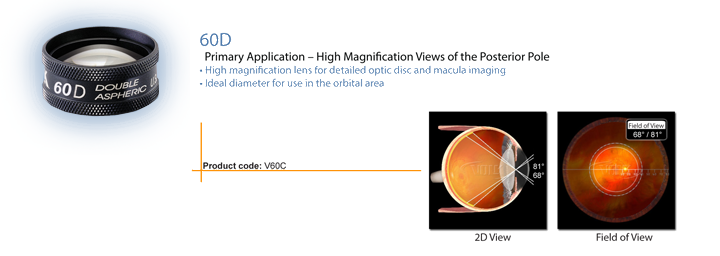

60 D Classic
Field of View: 68°/ 81°
image Mag: 1.15x
Laser Spot: .87x
Working Distance: 13mm
Primary Application: High Magnification views of posterior pole
78 D Classic
Field of View: 81°/ 97°
image Mag: .93x
Laser Spot: 1.08x
Working Distance: 8mm
Primary Application: General diagnosis and treatment

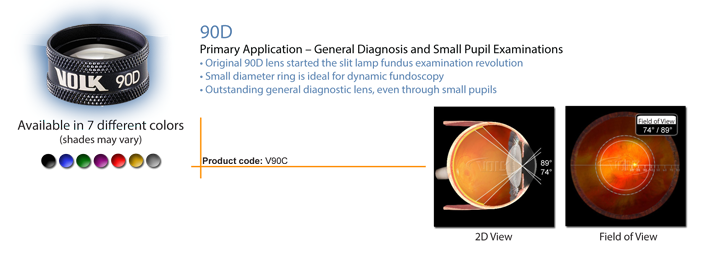

90 D Classic
Field of View: 74°/ 89°
image Mag: .76x
Laser Spot: 1.32x
Working Distance: 7mm
Primary Application: General diagnosis / small pupil examinations
Super Series

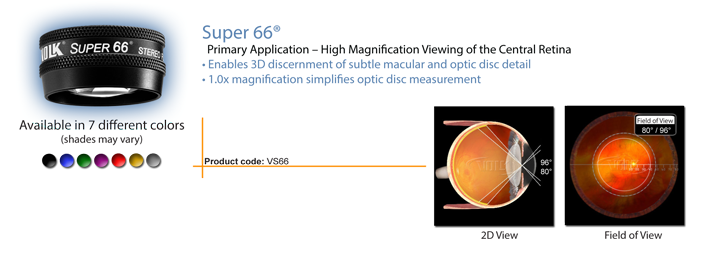

Super 66 ®
Field of View: 80° / 96°
image Mag: 1.0x
Laser Spot: 1.0x
Working Distance: 11mm
Primary Application: High resolution viewing of posterior pole

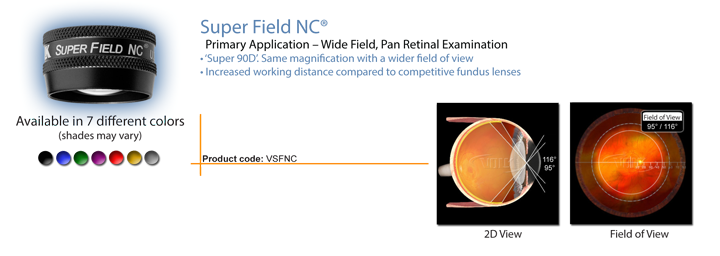

Super Field ®
Field of View: 96°/116 °
image Mag: .76x
Laser Spot: 1.3x
Working Distance: 7mm
Primary Application: General retinal scanning situations

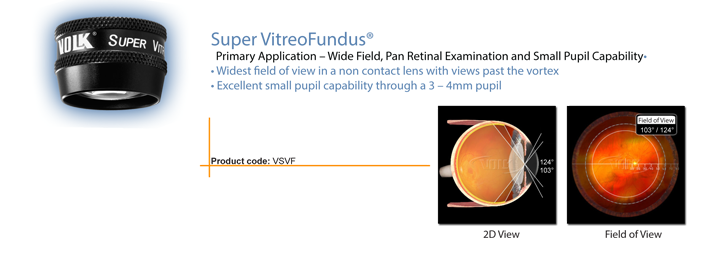

Super Vitro Fundus ®
Field of View: 103°/ 124°
image Mag: .57x
Laser Spot: 1.75x
Working Distance: 4-5mm
Primary Application: wide filed retinal scanning and small pupil exams (3-4mm)
Super Pupil ® XL
Field of View: 103°/ 124°
image Mag: .45x
Laser Spot: 2.2x
Working Distance: 4mm
Primary Application: Examination through small pupils(2-3mm)
Digital Series

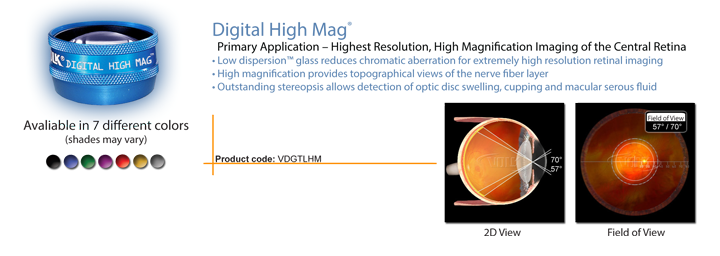

Digital High Mag ®
Field of View: 57°/ 70°
Image Magnification: 1.30x
Laser Spot Mag. Factor: .77x
Working Distance: 13mm
Primary Application: Highest resolution and magnification imaging of the posterior pole with reduced glare and reflections

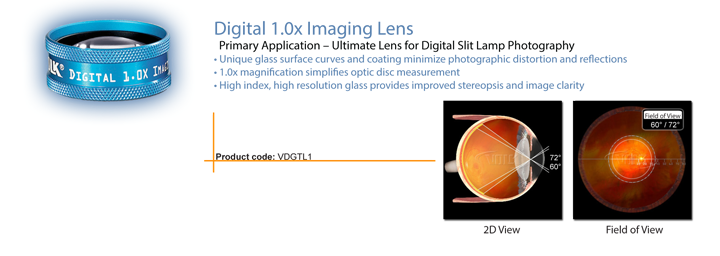

Digital 1.0x Imaging Lens
Field of View: 60°/ 72°
Image Magnification: 1.0x
Laser Spot Mag. Factor: 1.0x
Working Distance: 12mm
Primary Application:
| High resolution 1.0x imaging with reduced glare ideal for optic disc measurements and slit lamp photography |
Digital Wide Field ®
Field of View: 103°/ 124°
Image Magnification: .72x
Laser Spot Mag. Factor: 1.39x
Working Distance: 4-5mm
Primary Application: High resolution, wide field retinal scanning and reduced glare and reflections
