Gonio Lenses

Unlock the full potential of gonioscopy with Volk’s industry-leading Gonio lenses. Our complete portfolio equips you with the right tools—whether you’re beginning your practice, expanding your lens collection, or adding treatment-specific lenses. We’re here to support and empower your workflow at every step.

GONIO3 lenses

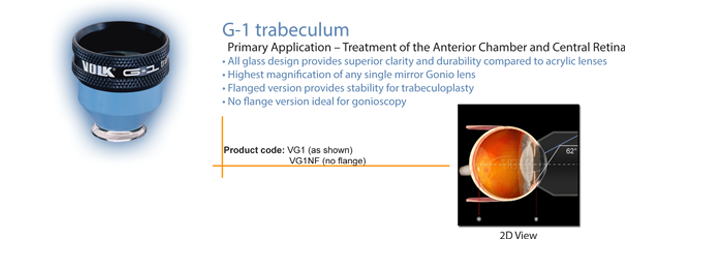

G-1 trabeculum

Mirror Angles: 62°
Image Magnification: 1.5x
Laser Spot Size: 0.67x
Contact Diameter: 15 mm

G-1 trabeculum nf

Mirror Angles: 62°
Image Magnification: 1.5x
Laser Spot Size: 0.67x
Contact Diameter: 8.4mm

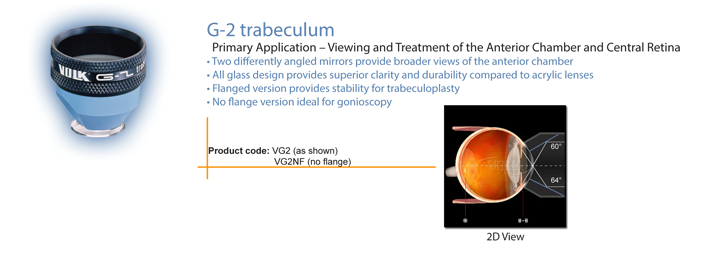

G-2 trabeculum

Mirror Angles: 60°/ 64°
Image Magnification: 1.5x
Laser Spot Size: 0.67x
Contact Diameter: 15mm

G-2 trabeculum nf

Mirror Angles: 60°/ 64°
Image Magnification: 1.5x
Laser Spot Size: 0.67x
Contact Diameter: 8.4mm

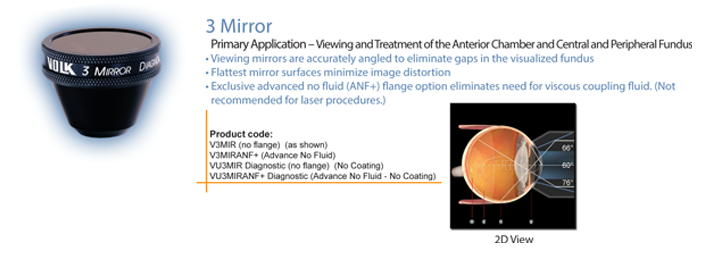

3 Mirror (no flange)

Mirror Angles: 60°/66° / 76°
Image Magnification: 1.06x
Laser Spot Size: 0.94x
Contact Diameter: 15mm

3 Mirror (ANF+)

Mirror Angles: 60°/66° / 76°
Image Magnification: 1.06x
Laser Spot Size: 0.94x
Contact Diameter: 18mm

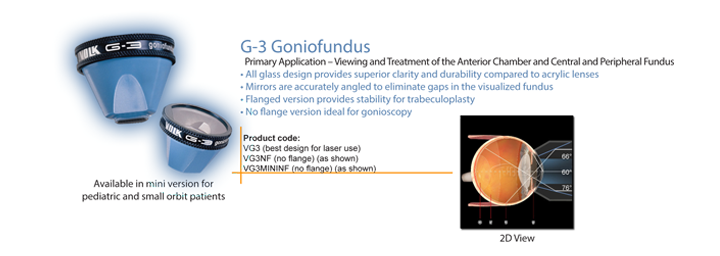

G-3 goniofundus

Mirror Angles: 60°/66° / 76°
Image Magnification: 1.06x
Laser Spot Size: 0.94x
Contact Diameter: 15mm

G-3 goniofundus nf

Mirror Angles: 60°/66° / 76°
Image Magnification: 1.03x
Laser Spot Size: 0.97x
Contact Diameter: 11.4mm

G-3 mini goniofundus nf

Mirror Angles: 60°/66° / 76°
Image Magnification: 1x
Laser Spot Size: 1x
Contact Diameter: 9.6mm

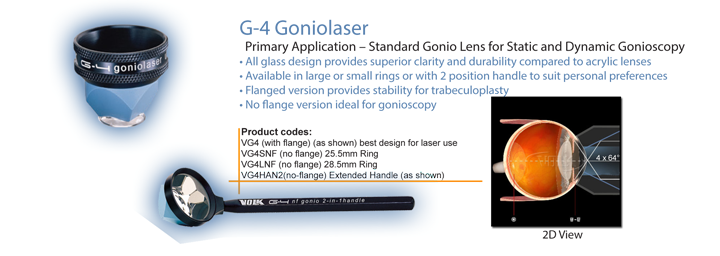

G-4 goniolaser

Mirror Angles: 4 x 64°
Image Magnification: 1x
Laser Spot Size: 1x
Contact Diameter: 15mm

G-4 gonio nf

Mirror Angles: 4 x 64°
Image Magnification: 1x
Laser Spot Size: 1x
Contact Diameter: 8.4mm

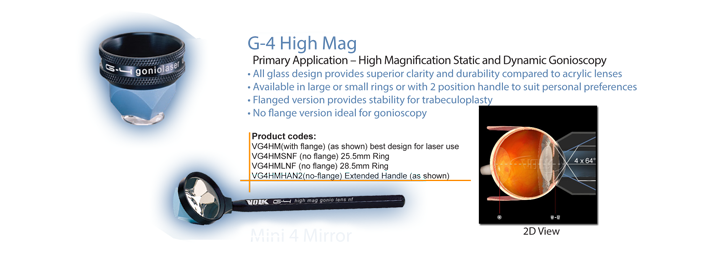

G-4 High Mag

Mirror Angles: 4 x 64°
Image Magnification: 1.5x
Laser Spot Size: .67x
Contact Diameter: 15mm

G-4 High Mag nf

Mirror Angles: 4 x 64°
Image Magnification: 1.5x
Laser Spot Size: .67x
Contact Diameter: 8.4mm

4 Mirror Mini (ANF+)

Mirror Angles: 4 x 62°
Image Magnification: 1.0x
Laser Spot Size: 1.0x
Contact Diameter: 15mm

G-6 nf

Mirror Angles: 6 x 63°
Image Magnification: 1.0x
Laser Spot Size: 1.0x
Contact Diameter: 8.4mm

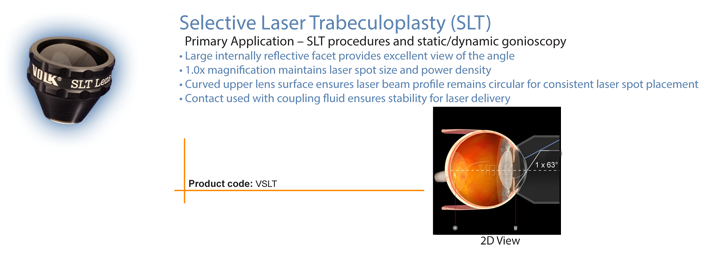

SLT

Mirror Angles: 1 x 63°
Image Magnification: 1.0x
Laser Spot Size: 1.0x
Contact Diameter: 15mm
